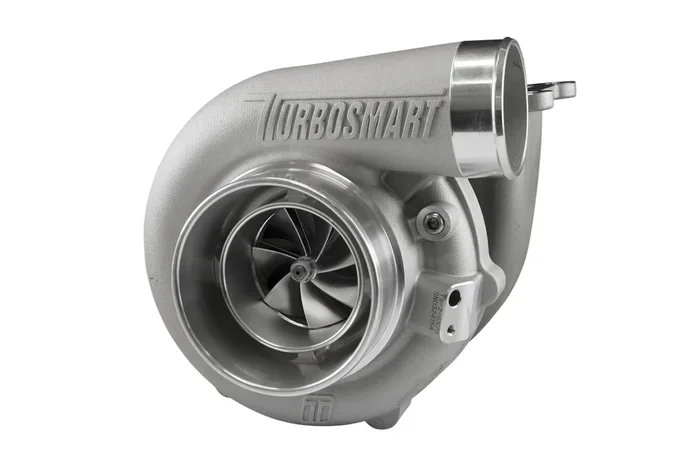

Turbosmart TS-1 Series Turbocharger
Smaller. Lighter. Faster.
Turbosmart’s turbocharger series is engineered to utilize cutting-edge materials, innovative design, and modern manufacturing techniques—delivering performance solutions for motorsport and performance enthusiasts alike.
Each turbocharger comes complete with weld flanges, V-band clamps, gaskets, oil feed and drain fittings, making installation straightforward and hassle-free.
The TS-1 Series features oil-cooled turbochargers with lightweight investment-cast turbine housings and a proprietary bearing and main shaft assembly that delivers unmatched transient response. The ultra-low rotating mass works in harmony with aggressive compressor aerodynamics for high performance at low shaft speeds, while the advanced turbine wheel maintains power and flow under heavy load.
Designed with a full engine system approach, Turbosmart turbochargers reduce back pressure and maximize flow, delivering smaller, lighter, and faster-responding performance compared to traditional systems.
Available In:
-
TS-1 (oil-cooled) turbochargers
-
TS-2 (oil & water-cooled) turbochargers
-
V-Band, T3, and T4 flange options
-
Reverse rotation (select sizes)
-
Multiple A/R options
-
Internal and external wastegate options
Key Features:
-
Exceptional transient response
-
7+7 2618 aluminum splitter compressor wheels
-
Lightweight 310S stainless steel investment-cast turbine housings
-
Lightweight aluminum compressor covers
-
CFD-optimized housings for ideal A/R and flow
-
713C Inconel turbine wheel for extreme EGT conditions
-
VSR speed balanced
-
Proprietary dual ceramic bearing system
-
Integrated iron backplate on center housing
Specifications:
-
Compressor Inlet: 4″ / 101.6mm
-
Compressor Inducer: 58mm
-
Turbine Inlet: V-Band (2.25″)
-
Turbine Exducer: 62mm
-
Turbine A/R: 0.82
-
Turbine Outlet: V-Band (3.00″)
-
Weight: 6.06kg / 13.3lbs
-
Horsepower Rating: 725–835 HP
