Description

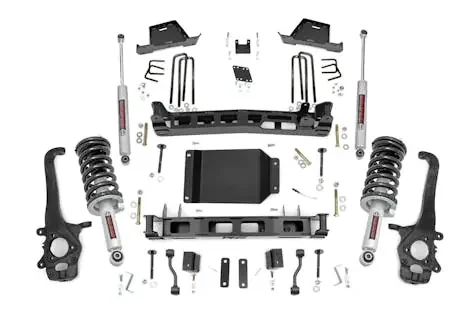

6 Inch Lift Kit – N3 Struts – Nissan Titan 2WD/4WD (2004-2015) Release your Nissan Titan’s inner beast with Rough Country’s 6-inch Suspension Lift! This durable, all-inclusive lift kit comes with everything you need for smooth off-road performance and aggressive good looks. Featuring beefy lifted knuckles and unrelenting front and rear crossmembers, your Titan is ready for the road less traveled. This kit also features a Differential Skid Plate, Fabricated Lift Blocks, Brake Line Brackets, and more! Gain increased ground clearance and enough ride height to run up to 35-inch tires. This kit includes Rough Country’s Lifetime Replacement Warranty!
- Integrated skid plate design Increased ground clearance
- Levels the front with the rear of the vehicle
- HD 0.25-inch thick steel crossmembers
- No exhaust modifications required Lifted front struts help maintain smooth, factory-like ride
- Front struts are structurally engineered for lifted applications
- Front struts are lifted 6-inches, eliminating the need for strut spacers Includes application valved N2 series shock absorbers which offer the best in balanced performance for on and off-road use.
Information:
Does NOT fit Pro-4X Models The area above the rear driveshaft may have to be modified to create clearance on 2011 – up models. Please view installation instructions for complete information on proper tire/wheel combinations. Use of a 35×12.50 tire may require modification to the front valance
Application Summary:
| Year | Make/Model |
|---|---|
| 2004-2015 | Nissan TITAN |
| Attributes | |
| California Proposition 65 | WARNING: Cancer – www.P65Warnings.ca.gov |
| Category | Susp Lift Kits 4wd |
| Country of Origin (Primary) | US |
| Front Components | Lifted knuckles, N3 Lifted Struts, Front crossmember, Rear crossmember, Bumpstop brackets, Differential skid plate, Cam bolts, Sway-bar links, Sway-bar brackets, Hardware |
| Front Kit Componenets | Lifted knuckles, N3 Lifted Struts, Front crossmember, Rear crossmember, Bumpstop brackets, Differential skid plate, Cam bolts, Sway-bar links, Sway-bar brackets, Hardware |
| Front Kit Components | Lifted knuckles, N3 Lifted Struts, Front crossmember, Rear crossmember, Bumpstop brackets, Differential skid plate, Cam bolts, Sway-bar links, Sway-bar brackets, Hardware |
| GTIN | 00843030125332 |
| Harmonized Tariff Code (Schedule B) | 8708809900 |
| Hazardous Material Code | N |
| Install Time | 8-10 hours |
| Life Cycle Status Code | Available to Order |
| Lift/Drop Height | 6 in. |
| NAFTA Preference Criterion Code | B |
| Rear Components | Fabricated lift blocks, U-bolts, Brake line brackets, Hardware |
| Rear Kit Components | Fabricated Lift Blocks, U-Bolts, Brake line brackets, Hardware |
| SDR Required Flag | N |
| Shipping Options | No Restrictions |
| Ships in Multiple Boxes | Y |
| Tire, Wheel, and Offset Info | 35×12.50R17:17×9:6×5.5:-12:-; 35×12.50R18:18×9:6×5.5:-12:-; 35×12.50R20:20×9:6×5.5:-12:-; 295 60R20:20×9:6×5.5:-12:-; 35×12.50R20:20×10:6×5.5:-25:Trimming Required; 295 60R20:20×10:6×5.5:-25:Minor Trimming; 35×12.50R20:20×10:6×5.5:-24:Trimming Required; 295 60R20:20×10:6×5.5:-24:Minor Trimming; 35×12.50R20:20×10:6×5.5:-19:Minor Trimming; 295 60R20:20×10:6×5.5:-19:Minor Trimming; 35×12.50R20:20×10:6×5.5:-18:Minor Trimming; 295 60R20:20×10:6×5.5:-18:Minor Trimming; 35×12.50R22:22×10:6×5.5:-25:Trimming Required; 35×12.50R22:22×10:6×5.5:-19:Minor Trimming; 35×12.50R22:22×10:6×5.5:-18:Minor Trimming |
