Description

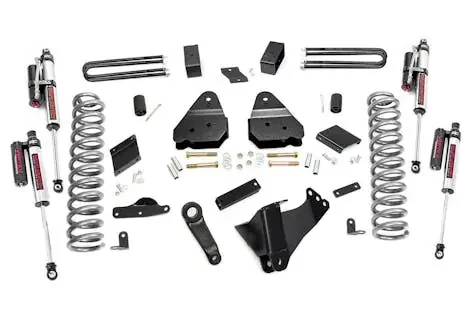

4.5 Inch Lift Kit – OVLD – Vertex – Ford Super Duty 4WD (2011-2014) Give your 11-14 Ford Super Duty an impressive upgrade, front to back with Rough Country’s 4.5″ Ford Suspension Lift Kit! This easy-to-install lift kit raises the front of your vehicle to be equal height with the rear for a leveled, better-than-stock look that gives an improved ride height and more aggressive appearance. This kit features a set of front, lifted coil springs allowing you gain additional ride height without sacrificing ride quality or performance. A set of sway bar drop brackets and track bar are provided to keep everything at optimum angles for a factory-like ride, even after lifting. A set of Rough Country’s premium N3 shocks are also included. These fine tuned 10-stage variable high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod and faster-cooling 54mm shock body. Get the wheels you want! Rough Country’s 4.5″ 11-14 Ford Suspension Lift Kit comes with everything you need to fit up to a 35″ tire with proper wheel backspacing. Best of all, Rough Country’s 4.5″ Ford Suspension Lift Kit is backed by our Lifetime Replacement Warranty!
- Easy bolt-on installation
- Increased ground clearance
- Levels the front with the rear of the vehicle
- Radius arm drop brackets allow for properly set caster
- Proper caster is crucial to maintaining factory handling and drivability
- Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
Information:
Does NOT F-350 models. Does NOT fit gas engine models. Does NOT fit dually models. A carrier bearing drop bracket is needed for trucks equipped with a 2-piece rear driveshaft. (#1197)
Application Summary:
| Year | Make/Model |
|---|---|
| 2011-2014 | Ford F-250 Super Duty |
| Attributes | |
| California Proposition 65 | WARNING: Cancer – www.P65Warnings.ca.gov |
| Category | Vertex Kits |
| Country of Origin (Primary) | TH |
| Front Components | Lifted coil springs, Radius arm drop brackets, Sway-bar drop brackets, Track bar drop bracket, Stabilizer relocation brackets, Pitman arm, Brake line brackets, Bumpstop spacers, Hardware |
| Front Kit Componenets | Lifted coil springs, Radius arm drop brackets, Sway-bar drop brackets, Track bar drop bracket, Stabilizer relocation brackets, Pitman arm, Brake line brackets, Bumpstop spacers, Hardware |
| Front Kit Components | Lifted coil springs, Radius arm drop brackets, Sway-bar drop brackets, Track bar drop bracket, Stabilizer relocation brackets, Pitman arm, Brake line brackets, Bumpstop spacers, Hardware |
| GTIN | 00843030153137 |
| Harmonized Tariff Code (Schedule B) | 8708809900 |
| Hazardous Material Code | N |
| Install Time | 4 – 6 hours |
| Life Cycle Status Code | Available to Order |
| Lift/Drop Height | 4.5 in. |
| NAFTA Preference Criterion Code | D |
| Rear Components | Fabricated lift blocks, Brake line brackets, U-bolts, Hardware |
| Rear Kit Components | Fabricated lift blocks, Brake line brackets, U-bolts, Hardware |
| SDR Required Flag | N |
| Shipping Options | No Restrictions |
| Ships in Multiple Boxes | Y |
| Tire, Wheel, and Offset Info | 35×12.50R17:17×9:8×170:-12:-; 35×12.50R17:17×9:8×170:+0:-; 35×12.50R17:17×9:8×170:+1:-; 35×12.50R18:18×9:8×170:-12:-; 35×12.50R18:18×9:8×170:+0:-; 35×12.50R18:18×9:8×170:+1:-; 35×12.50R20:20×9:8×170:-12:-; 35×12.50R20:20×9:8×170:+0:-; 35×12.50R20:20×9:8×170:+1:-; 35×12.50R20:20×10:8×170:-25:Minor Trimming; 295 60R20:20×10:8×170:-25:Minor Trimming; 35×12.50R20:20×10:8×170:-24:Minor Trimming; 295 60R20:20×10:8×170:-24:Minor Trimming; 35×12.50R20:20×10:8×170:-19:Minor Trimming; 295 60R20:20×10:8×170:-19:Minor Trimming; 35×12.50R20:20×10:8×170:-18:Minor Trimming; 295 60R20:20×10:8×170:-18:Minor Trimming; 35×12.50R20:20×12:8×170:-44:Minor Trimming; 35×12.50R22:22×10:8×170:-25:Minor Trimming; 35×12.50R22:22×10:8×170:-24:Minor Trimming; 35×12.50R22:22×10:8×170:-19:Minor Trimming; 35×12.50R22:22×10:8×170:-18:Minor Trimming; 35×12.50R22:22×12:8×170:-44:Minor Trimming |
