Description

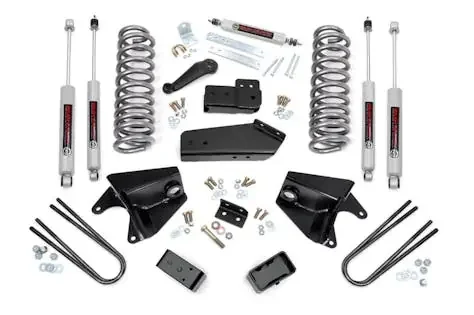

4 Inch Lift Kit – Rear Blocks – Ford F-150 4WD (1980-1996) Give your Ford an aggressive look from front to rear with Rough Country’s 4″ Ford Suspension Lift Kit! This easy-to-install leveling kit raises the front of your vehicle to be equal height with the rear for a leveled, flush look that gives a better ride height and more aggressive appearance. This kit features a set of front, durable coil springs allowing you gain additional ride height without sacrificing ride quality or performance. A set of radius arm and axle drop brackets are provided to keep everything at optimum angles for a factory-like ride, even after lifting. Our fabricated rear blocks offer considerably more strength than their cast iron counterparts. A set of Rough Country’s premium N3 shocks are also included in this kit. These fine tuned 10-stage variable high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod and faster-cooling 54mm shock body. Get the wheels you want! Rough Country’s 4″ Ford Suspension Lift Kit comes with everything you need to fit up to a 33″ tire with proper wheel backspacing. Best of all, Rough Country’s 4″ Ford Suspension Lift Kit is backed by our Lifetime Replacement Warranty.
- Increased ground clearance
- Levels the front with the rear of the vehicle
Information:
Extended brake lines are recommended. If vehicle is equipped with a front sway-bar, drop brackets are recommended. (SKU: 1018) Vehicles with factory quad shocks (2 front shocks per side) will simply use a single aftermarket shock.
Application Summary:
| Year | Make/Model |
|---|---|
| 1980-1996 | Ford F-150 |
| Attributes | |
| California Proposition 65 | WARNING: Cancer – www.P65Warnings.ca.gov |
| Category | Susp Lift Kits 4wd |
| Country of Origin (Primary) | US |
| Front Components | Lifted coil springs, Radius arm drop brackets, I-beam drop brackets, Power steering pitman arm, FREE steering stabilizer, Hardware |
| Front Kit Componenets | Lifted coil springs, Radius arm drop brackets, I-beam drop brackets, Power steering pitman arm, FREE steering stabilizer, Hardware |
| GTIN | 00843030127114 |
| Harmonized Tariff Code (Schedule B) | 8708809900 |
| Hazardous Material Code | N |
| Install Time | 6-8 hours |
| Life Cycle Status Code | Available to Order |
| Lift/Drop Height | 4 in. |
| NAFTA Preference Criterion Code | B |
| Rear Components | 3 in lift blocks, U-bolts, Hardware |
| Rear Kit Components | 3in Fabricated Lift Blocks, U-Bolts, Hardware |
| SDR Required Flag | N |
| Shipping Options | No Restrictions |
| Ships in Multiple Boxes | Y |
| Tire, Wheel, and Offset Info | 33×12.50R15:15×8:5×5.5:-19:-; 33×12.50R16:16×8:5×5.5:-19:-; 33×12.50R17:17×8:5×5.5:-19:-; 33×12.50R17:17×8.5:5×5.5:+0:-; 33×12.50R17:17×8.5:5×5.5:+1:-; 33×12.50R17:17×9:5×5.5:-12:-; 33×12.50R17:17×9:5×5.5:+0:-; 33×12.50R17:17×9:5×5.5:+1:-; 33×12.50R18:18×8:5×5.5:-19:-; 33×12.50R18:18×8.5:5×5.5:+0:-; 33×12.50R18:18×8.5:5×5.5:+1:-; 33×12.50R18:18×9:5×5.5:-12:-; 33×12.50R18:18×9:5×5.5:+0:-; 285/65R18:18×9:5×5.5:+0:-; 33×12.50R18:18×9:5×5.5:+1:-; 285/65R18:18×9:5×5.5:+1:-; 33×12.50R20:20×8:5×5.5:-19:-; 33×12.50R20:20×9:5×5.5:-12:-; 33×12.50R20:20×9:5×5.5:+0:-; 305/55R20:20×9:5×5.5:+0:-; 285/55R20:20×9:5×5.5:+0:-; 33×12.50R20:20×9:5×5.5:+1:-; 305/55R20:20×9:5×5.5:+1:-; 285/55R20:20×9:5×5.5:+1:-; 285/55R20:20×10:5×5.5:-19:-; 33×12.50R22:22×10:5×5.5:-18:- |
