Description

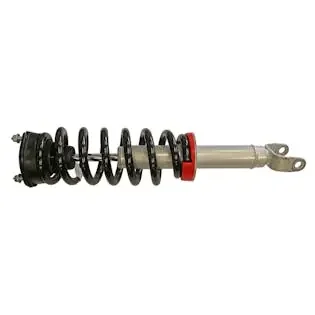

Rancho QuickLIFT RS999953 Suspension Strut and Coil Spring Assembly for Ram 1500 An all-in-one solution, Rancho® quickLIFT™ loaded assemblies level and lift late model trucks and SUVs. This complete assembly simplifies installation, levels the front suspension and provides additional lift to accommodate larger wheels and tires.
- COMPLETE SOLUTION — Levels and lifts late model trucks and SUVs without the cost of complete suspension system
- EASY BOLT-ON INSTALLATION — Complete assembly includes application-specific coil spring and upper mounting plate to simplify installation
- LEVELS FRONT SUSPENSION — Removes factory rake for an aggressive stance
- INCREASED GROUND CLEARANCE — Provides 2-in. of additional lift to accommodate up to 265x70x17 tires for a custom look and increased ground clearance (lift height varies depending upon application)
- NINE LEVELS OF PERFORMANCE — Includes RS9000™XL strut with nine-position easy-to-adjust knob to allow customized damping control and firmness for on-road and off-road flexibility
- BUILT TO LAST — Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression and long-lasting premium liquid metallic finish and polyvinyl protective boot ensure long life
- REDUCES FADE — Nitrogen gas pressurized to 100 PSI to minimize air-to-oil mixture and reduce damping performance fade and foaming
- BUY WITH CONFIDENCE — Comes with Rancho’s Limited Lifetime Warranty
Application Summary:
| Year | Make/Model |
|---|---|
| 2019-2025 | Ram 1500 |
| Attributes | |
| Adjustable Dampening | Yes |
| Body Diameter | 2.13 |
| Body Type | SS4 |
| California Proposition 65 | No |
| Compressed Bumper Stop | Yes |
| Compressed Length | 16.6 |
| Country of Origin (Primary) | US |
| Dust Shield | Yes |
| Dust Shield Included | Yes |
| Extended Bumper Stop | Yes |
| Extended Hydraulic Lockout | No |
| Extended Length | 566.9 |
| GTIN | 00039703012942 |
| Gas Charged | Yes |
| Grade Type | Performance |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Hazardous Material Code | N |
| Hydraulic Lockout | No |
| Internal Rebound Bumper | Yes |
| Life Cycle Status Code | Available Only While Supplies Last |
| Lower Mount Type | Clevis Bracket Mount |
| NAFTA Preference Criterion Code | B |
| Parts Pack(s) | P01141 |
| Reserve Tube Diameter | 2.13 |
| SDR Required Flag | Y |
| SDS Sheet Number | 01164 |
| Travel Length | 5.72 |
| Upper Mount Type | Stud Plate Mount |
