Description

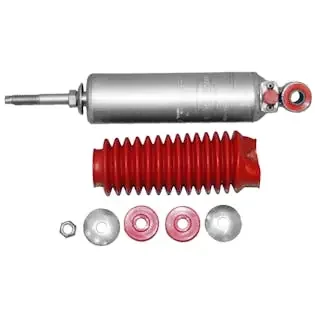

Rancho RS9000XL RS999295 Suspension Shock Absorber for Chevrolet Silverado 2500 Get premium control and performance with Rancho RS9000™XL shocks. Recognized as the first nine-position manually adjustable ride control series in the off-road market, RS9000XL shocks are ideal for on- and off-road use, towing and more.
- NINE LEVELS OF PERFORMANCE — Nine-position easy-to-adjust knob allows customized damping control and firmness for on-road and off-road flexibility
- DESIGNED FOR HARDWORKING VEHICLES — Ideal for stock or lifted trucks, SUVs and Jeeps that tow, haul or go off road
- INDUSTRY FIRST — Recognized as the first nine-position manually adjustable shock series in the off-road market
- REDUCES FADE — Nitrogen gas pressurized to 120 PSI to minimize air-to-oil mixture and reduce damping performance fade and foaming
- STRONG AND DURABLE — Features an application-specific 18mm nitro-carburized piston rod to resist scuffs and corrosion, double-welded loops at stress areas and 1.25-in. sintered iron piston for enhanced structural integrity
- HANDLES EXTREME TEMPERATURE CHANGES — Up to 2.75-in. tri-tube body (application specific) filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
- SMOOTH PERFORMANCE — Polyurethane rebound bumper and bushings and graphite-filled fluon-banded piston help absorb ride harshness and enhance responsiveness to changing road conditions for an overall smoother ride
- BUILT TO LAST — Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the long-lasting premium liquid metallic finish and polyvinyl protective boot ensures longer life
- BUY WITH CONFIDENCE — Comes with Rancho’s Limited Lifetime Warranty
Application Summary:
| Year | Make/Model |
|---|---|
| 2002-2006 | Chevrolet Avalanche 2500 |
| 2001-2003 | Chevrolet Silverado 1500 HD |
| 2005-2006 | Chevrolet Silverado 1500 HD |
| 2007 | Chevrolet Silverado 1500 HD Classic |
| 1999-2004 | Chevrolet Silverado 2500 |
| 2000-2013 | Chevrolet Suburban 2500 |
| 2001-2003 | GMC Sierra 1500 HD |
| 2005-2006 | GMC Sierra 1500 HD |
| 2007 | GMC Sierra 1500 HD Classic |
| 1999-2004 | GMC Sierra 2500 |
| 2000-2013 | GMC Yukon XL 2500 |
| Attributes | |
| ASIN | B0018YIIL0 |
| Adjustable | No |
| Adjustable Damping | Yes |
| Adjustable Length | No |
| Adjustable Rebound | Yes |
| Air Adjustable | No |
| Air Ride Suspension | No |
| Bearing Plate Included | No |
| Body Color | Silver |
| Body Diameter | 2.38, 60.5 |
| Body Material | Steel |
| Boot Included | Yes |
| California Proposition 65 | No |
| Coil Over Springs Included | No |
| Collapsed Length | 10.440 in. |
| Collapsed Length (in.) | 10.730 |
| Color | Silver |
| Compressed Bumper Stop | No |
| Compressed Length | 277.4 |
| Country of Origin (Primary) | US |
| Cylinder Color | Silver |
| Cylinder Material | Steel |
| Cylinder Outside Diameter | 60.5 |
| Dust Shield | Yes |
| Dust Shield Color | Red |
| Dust Shield Included | Yes |
| Extended Bumper Stop | Yes |
| Extended Hydraulic Lockout | No |
| Extended Length | 393.2 |
| Extended Length (in.) | 15.260 in. |
| Finish | Painted |
| Fully Open Length | 15.260 in. |
| GTIN | 00039703092951 |
| Gas Charged | Yes |
| Grade Type | Performance |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Hazardous Material Code | N |
| Internal Construction Type | Tri Tube |
| Life Cycle Status Code | Available Only While Supplies Last |
| Lower Mount Code | LS42 |
| Lower Mount Type | Loop Bushing and Sleeve Mount – 14MM Sleeve ID X 1.5/16″ Sleeve OAL |
| Lower Mounting Code | LS42 |
| Lower Mounting Description | Loop Bushing & Sleeve Mount – 14MM Sleeve ID X 1.5/16″ Sleeve OAL |
| Max Year Covered | 2013 |
| Min Year Covered | 1999 |
| Most Popular Make / Model | Chevrolet Silverado 2500 |
| Most Popular Make/Model | Chevrolet Silverado 2500 |
| Most Popular Year | 2003 |
| Mounting Hardware Included | Yes |
| NAFTA Preference Criterion Code | B |
| New Or Remanufactured | New |
| Part Description | Shock Absorber |
| Parts Pack | P01356 |
| Parts Pack(s) | P01356 |
| Product Grade | Premium |
| Reserve Tube Diameter | 2.38 |
| Rod Diameter | 18 |
| SDR Required Flag | Y |
| SDS Sheet Number | 01164 |
| Shaft Material | Nitrocarburized |
| Shock Absorber Body End Measuring Point | Base of Stem |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Stroke | 4.530 in., 115.8 |
| Shock Stroke (in.) | 4.530 |
| Spring Included | No |
| Spring Isolators Included | No |
| Spring Seat Included | No |
| Total Part VIO | 373685 |
| Travel Length | 115.8 |
| Type | Telescopic |
| Upper Mount Code | S5 |
| Upper Mount Type | Stem Mount – 2.5/8″ Stem Length X 1/2″-13 Thread Pitch |
| Upper Mounting Code | S5 |
| Upper Mounting Description | Stem Mount – 2.5/8″ Stem Length X 1/2″-13 Thread Pitch |
