Description

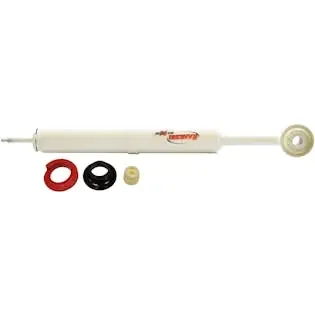

Rancho RS5000X RS55833 Suspension Strut for Ford F-150 Featuring a unique, exclusive valving system and advanced compression functionality, Rancho® RS5000™X struts deliver improved overall on- and off-road handling and performance.
- IMPROVED HANDLING AND PERFORMANCE — Cross Tuned technology featuring exclusive rebound valving system and advanced compression phase improves overall handling and performance on and off road
- MINIMIZES ROUGH RIDE — Exclusive Progressive Engagement Valving is custom-tuned for each vehicle to help reduce initial impacts at low speeds and minimizes a rough ride
- STRONG AND DURABLE — Features a nitro-carburized piston rod to resist scuffs & corrosion, double-welded loops at stress areas, application-specific sintered iron piston for enhanced structural integrity and polyvinyl protective boot
- HANDLES EXTREME TEMPERATURE CHANGES — Large twin-tube body filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
- SMOOTH PERFORMANCE — Polyurethane rebound bumper and rubber bushings help absorb ride harshness while the fluon-banded piston enhances responsiveness to changing road conditions for an overall smoother ride
- REDUCES FADE — Nitrogen gas pressurized to 60 PSI to minimize air-to-oil mixture to reduce damping performance fade and foaming
- MAINTAINS VEHICLE CONTROL — Compression Control Valve is custom-tuned for each vehicle to regulate fluid transfer to absorb impacts without disc flutter and help maintain shock motion control
- BUILT TO LAST — Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the application-specific piston delivers heightened control of shock motion due to the expanded piston area
- BUY WITH CONFIDENCE — Comes with Rancho’s Limited Lifetime Warranty
Application Summary:
| Year | Make/Model |
|---|---|
| 2010-2013 | Ford F-150 |
| Attributes | |
| ASIN | B00UW72K5Y |
| Adjustable Dampening | No |
| Body Length | 20.97 |
| Body Length (in.) | 20.970 |
| Body Type | SS2 |
| California Proposition 65 | No |
| Collapsed Length | 21.620 in. |
| Collapsed Length (in.) | 21.620 |
| Compressed Bumper Stop | No |
| Compressed Length | 21.62, 21.620 |
| Country of Origin (Primary) | US |
| Cylinder Included | No |
| Dust Shield | No |
| Dust Shield Included | No |
| Extended Bumper Stop | Yes |
| Extended Hydraulic Lockout | No |
| Extended Length | 662.7, 26.090 in. |
| Extended Length (in.) | 26.090 in. |
| Finish | Painted |
| Fully Open Length | 26.090 in. |
| GTIN | 00039703006590 |
| Gas Charged | Yes |
| Grade Type | Performance |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Hazardous Material Code | N |
| Hydraulic Lockout | No |
| Life Cycle Status Code | Available to Order |
| Lower Mount Type | Loop Bushing Mount – 5/8″ Bushing ID X 1.5/16″ Bushing OAL |
| Lower Mounting Description | Loop Bushing Mount – 5/8″ Bushing ID X 1.5/16″ Bushing OAL |
| Max Year Covered | 2013 |
| Min Year Covered | 2010 |
| Most Popular Make / Model | Ford F-150 |
| Most Popular Make/Model | Ford F-150 |
| Most Popular Year | 2013 |
| NAFTA Preference Criterion Code | B |
| Parts Pack | P01770 |
| Parts Pack(s) | P01770 |
| Product Grade | Premium |
| SDR Required Flag | Y |
| SDS Sheet Number | 01164 |
| Shock Stroke | 4.620 in. |
| Shock Stroke (in.) | 4.620 |
| Total Part VIO | 1381092 |
| Travel Length | 4.62 |
| Upper Mount Type | Loop Bushing Mount – 5/8″ Bushing ID X 1.5/16″ Bushing OAL |
| Upper Mounting Description | Loop Bushing Mount – 5/8″ Bushing ID X 1.5/16″ Bushing OAL |
