Description

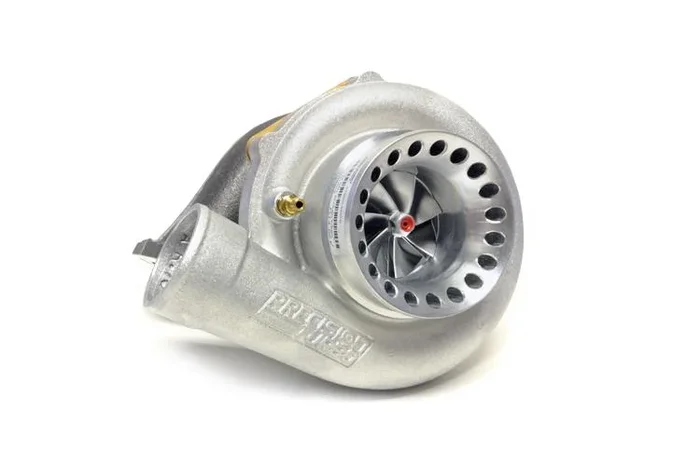

This popular 62mm turbo is rated for 800hp depending on the application.Exclusive CEA® (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum forging. Higher efficiency and faster transient response for maximum power and performance.Gen2 Turbos are Ball Bearing only.
Compressor Specifications
- Compressor Wheel Exducer:81.99mm
- Compressor Wheel Inducer:62.23mm
- Compressor Housing Connections:
- Inlet:4.0″ Hose Coupler (CCS)
- Outlet:2.5″ Hose Coupler (CCS)
Turbine Specifications
- Turbine Wheel Exducer:66mm
- Turbine Wheel Inducer:74.17mm
- Housing Size and A/R ratio:
- V-Band Inlet, V-Band Outlet 0.82 A/R
- Stainless Steel V-Band Inlet, V-Band Outlet 0.82 A/R
Data Sheet
We’ve got your back!
Function Factory Performancetakes “customer service” very personally. We understand that finding the right parts can be overwhelming. Education and awareness are the principles that keep us ahead of the curve. Let us make this experience simple, easy, and awesome, so without hesitation give us a call at (480) 576-8606, feel free to direct message on our live chat orCLICK HEREto contact us via email.
Make sure to follow us on Instagram:@FFPerformanceAZandYoutube.
EMAIL A FACTORY SPECIALIST FOR HELPCALL A FACTORY SPECIALIST NOW
Reviews
There are no reviews yet.
