Description

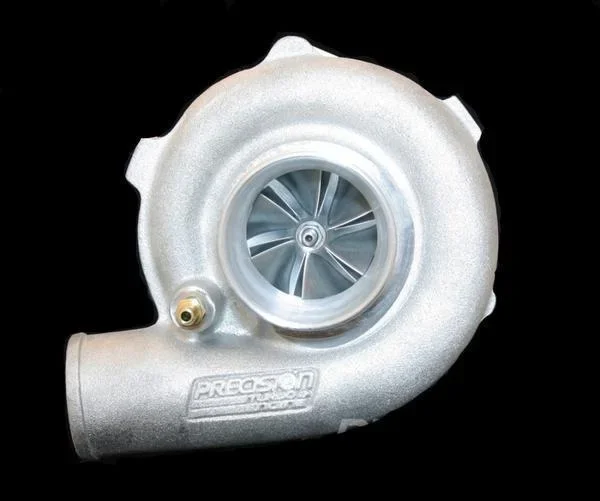

This popular 58mm turbo is rated for 640hp depending on the application.Exclusive CEA® (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum forging. Higher efficiency and faster transient response for maximum power and performance.
Compressor Specifications
- Compressor Wheel Exducer:76.2mm
- Compressor Wheel Inducer:58mm
- Compressor Housing Connections:
- Inlet:2.8″ Hose Coupler (CCB), 3″ Hose Coupler (CCE), 4.0″ Hose Coupler (CCS)
- Outlet:2.0″ Hose Coupler (CCB and CCE), 2.5″ Hose Coupler (CCS)
Turbine Specifications
- Turbine Wheel Exducer:61.9mm
- Turbine Wheel Inducer:71mm
- Housing Size and A/R ratio:
- T3 Inlet, 4-Bolt Outlet 0.63 A/R
- T3 Inlet, 4-Bolt Outlet 0.82 A/R
- T3 Inlet, 5-Bolt Outlet 0.63 A/R
- T3 Inlet, V-Band Outlet 0.63 A/R
- T3 Inlet, V-Band Outlet 0.82 A/R
