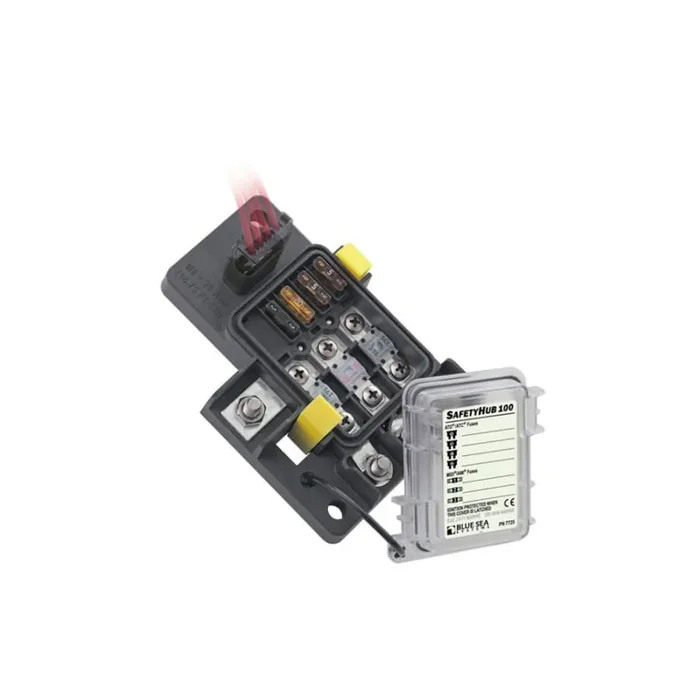

Blue Sea Systems SafetyHub 100 Fuse Block – 7725B-BSS

Description

Description

• The SafetyHub 100 combines an ignition protected fuse block and an integrated connecting plug. It is safe for use on gasoline powered boats, reduces wiring connections, and consolidates up to seven fused circuits. Sealed cover protects fuses from the harsh marine environment: IP66 ratingprotected against powerful water jets.
• Integrated connector plugs eliminate loose wires and provide a secure, waterproof connection.
• Ignition protected fusing meets Coast Guard and ABYC requirements for installation on gasoline or diesel powered boats.

Features

Specification

Circuits	:	7
Stud Size	:	M8 x 1.25
Operating Voltage	:	12V, 24V, 32V
Amperage Maximum Operating – combined	:	280A
Recommended Ring Terminal	:	M8
Weight	:	1.45Kg
Warranty	:	1 Year

Compatibility

Please make sure your current battery has the matching required specification to ensure a like for like replacement.

Compatibility Check

Before sending out your ordered part(s), we perform a compatibility check to guarantee that they will fit your vehicle. This verification can be done by using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car information before proceeding to checkout.

Part Number

BLUE SEA-7725B-BSS

More Information

Manufactured by

BLUE SEA
